Distributed Power Control Container

Product features and advantages

Smarter

Intelligent main control technology
Intelligent charge and discharge control
Intelligent battery management system

High performance

Service life: 6000 cycles
Excellent current balancing performance
Wider application temperature range
Excellent overcurrent capability

High security

Use safer lithium iron phosphate batteries
Supports a variety of real-time alarm and protection functions
Built-in DC switch to isolate battery and inverter
Built-in fire protection module

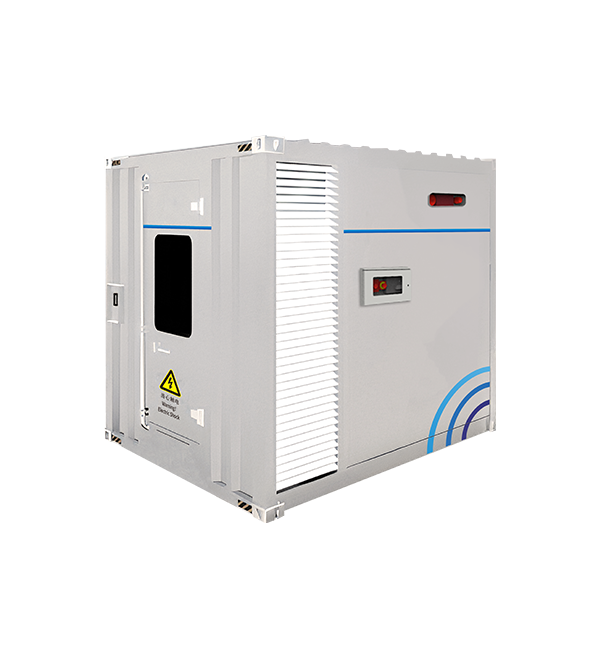

Distributed Power Control Container

Microgrid/On grid energy storage control system

Integrated design and modular assembly integrate hybrid inverter or PCS, battery cabinet DC confluence, BMS master control, display screen, local EMS (including 4G), power distribution, access control, water immersion, step-up transformer (optional), etc. In independent 10-foot or 20-foot containers. The product supports multiple MPPT and energy storage battery inputs, and supports off-grid operation mode. The product adopts standardized and unitized design and can be flexibly configured according to the needs of actual application scenarios.

Strong compatibility

Suitable for multiple application scenarios

Support a variety of energy mixed access, such as diesel generators, photovoltaic power generation.It can be used in complex networks such as grid-connected and micro-grid.

Powerful functions

Active and reactive power optimization

Optimize circuit energy efficiency and reduce power system losses.

Modular design

Operated independently

Modular design, support multiple batteries in parallel access, power and capacity can be expanded.

Product Parameters

The main parameters

Max. PV input Voltage [V]1000
Max. PV input Power [kW]500~2000
Battery Voltage Range [V]220~850
Maximum charging power [kW]500~2000
AC side rated voltage [V]400V/10kV/22kV
BMS ProtectionMultiple voltage and current detection and protection circuits.
PCS ProtectionLow voltage ride-through function and high voltage ride-through function.

Other parameters

Dimensions10GP/20GP
Weight~~6T/~12T

Accessories parameters

Isolationisolated (Optional)
Fire FightingAerosol (Optional)
