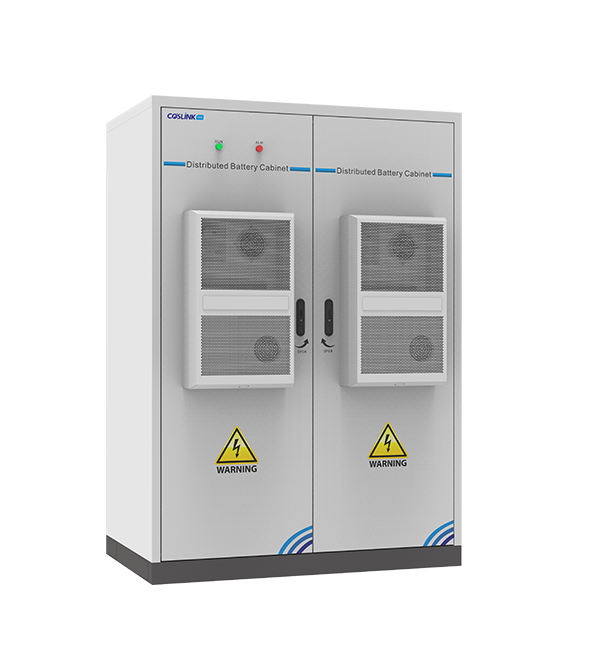

Adopting an integrated design, the energy storage battery, battery management system, fire protection system, temperature control system, power distribution, access control, water immersion and other designs are integrated into an independent IP65 outdoor cabinet.
The product adopts a distributed layout and is installed in a modular manner from standardized, unitized outdoor battery cabinets. It supports parallel connection of multiple cabinets, and users can flexibly configure them according to actual application scenarios.
Supports CATL and other mainstream battery cell models in the industry, supports intelligent string and modular PCS, and supports highly reliable modbus bus and CAN communication.
One station, one cabinet, can support MWh system expansion, IP65, dustproof, waterproof and lightning proof, integrated access control and flood protection.
System-wide data visualization, operation and maintenance analysis of fault information, support for local and remote management, and 7*24h real-time online monitoring of equipment operating status.

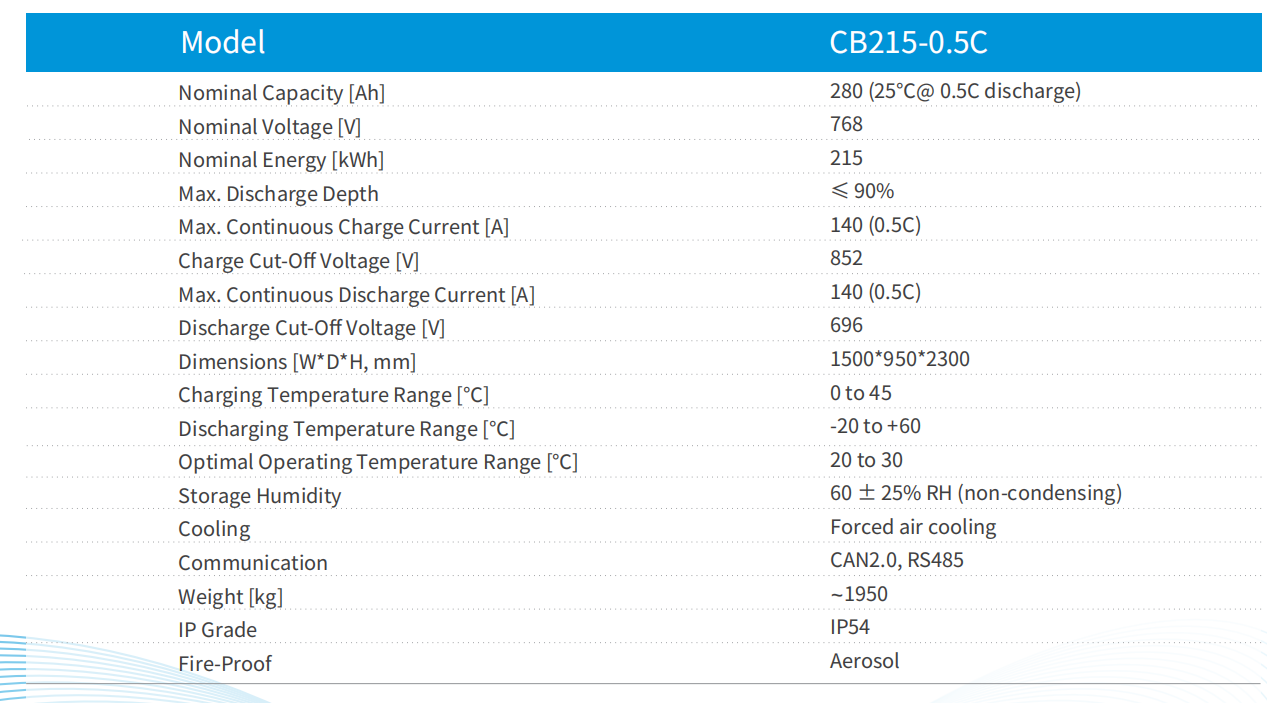

Nominal Capacity [Ah] | 280 |
Nominal Voltage[V] | 768 |
Nominal Energy [kWh] | 215 |
Max. Continuous Charge Current [A] | 140(0.5C) |
Max. Continuous Discharge Current [A] | 140(0.5C) |
Charging Temperature Range [℃] | 0~45 |
Discharging Temperature Range [℃] | -20~60 |
Cooling | Smart temperature control |
Communication | CAN2.0, RS485 |
Dimensions [W*D*H, mm] | 1500*950*2300 |
Weight [kg] | ~1950 |
IP Grade | IP54 |
Fire-Proof | Aerosol |
Expansion bolt M12, Spring washer, Flat Washers, Type 1 hexagonal nut
