Product features and advantages

Intelligent main control technology Intelligent charge and discharge control Intelligent battery management system

Service life: 6000 cycles Excellent current balancing performance Wider application temperature range Excellent overcurrent capability

Use safer lithium iron phosphate batteries Supports a variety of real-time alarm and protection functions Built-in DC switch to isolate battery and inverter Built-in fire protection module

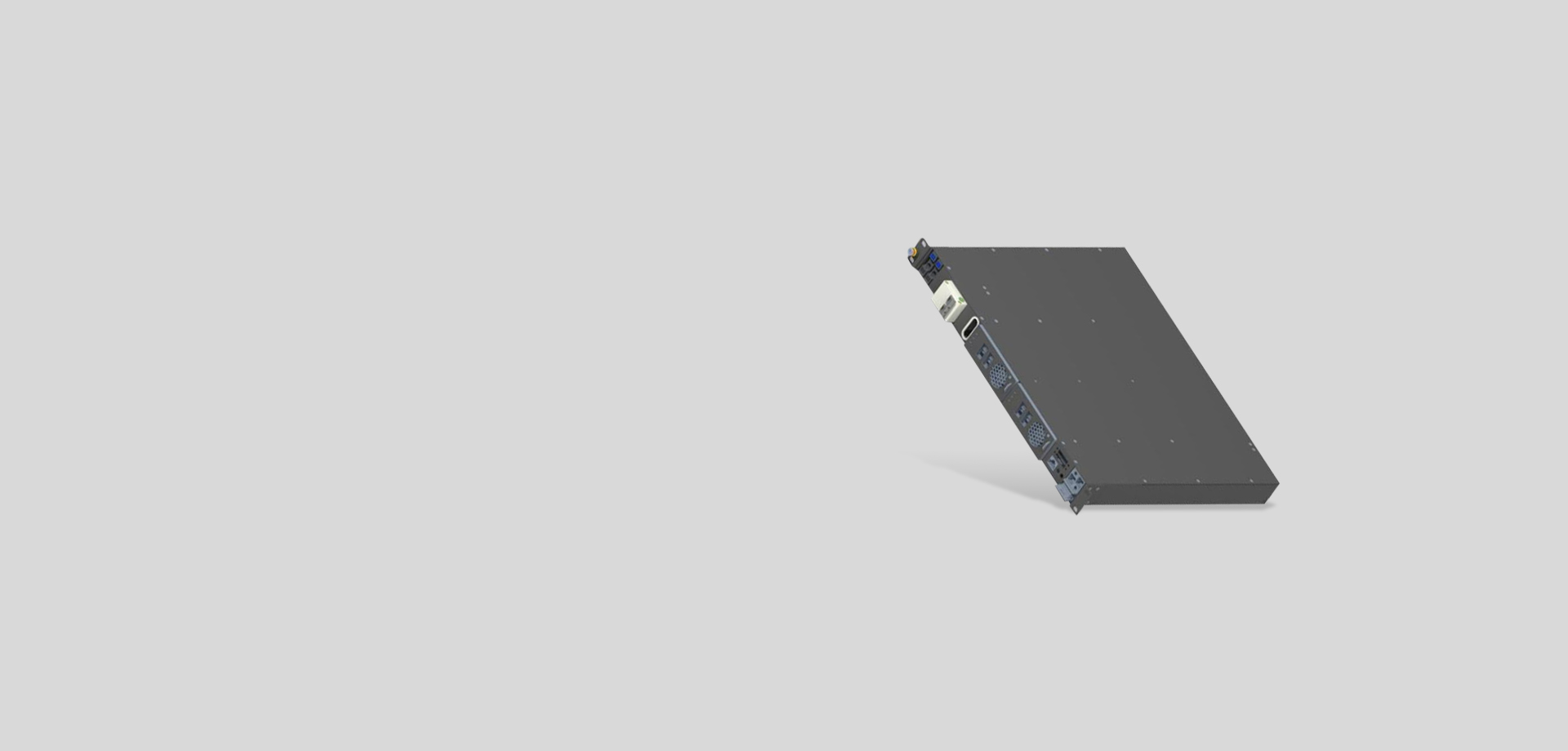

EnerSmart Embedded MPPT Controller

Each unit is 1U, and up to 4 units can be expanded, remote monitoring is available.

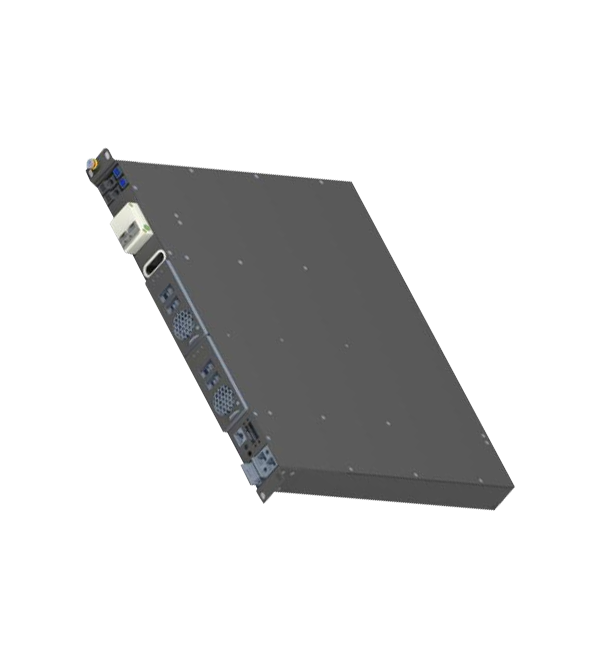

1U unit, integrating 2 PV modules and 1 monitoring module, can be installed in any combination of 3KW/4KW PV modules. The rated power output range of each unit is 3~8 kW. It has cascade function, can be expanded up to 4 units, and supports remote upgrade and debugging.

Flexible Configuration Wide power range Each unit can supply 3 kW/4 KW PV modules for arbitrary combination installation. Up to 4 units can be smoothly expanded, and it can support 3~24 kW application scenarios.

High Compatibility Supports a wide range of communications It has RS485, 4G, and dry contact interfaces; supports communication with multiple parallel connection, centralized monitoring and management; supports third-party platform access.

Reconstructed Site Solution

Intelligent Management

More intelligent and convenient

It has MPPT tracking function, which can collect PV voltage, current, power, cumulative power generation, output voltage, DC converter output current of the device itself, and visualize them into curve charts and reports. All curve charts and reports support download and local upper computer, APP, and web remote monitoring.

3~24 kW Support Power Range
≥97% Efficiency
58V～150V DC Input Voltage

Product Parameters

The main parameters

Input Voltage	58V DC～150V DC
Input Switch	2
Output Voltage	43V DC～58V DC; Rated value 48V DC
Output Switch	1
Output Power Range	3～8 kW, supports mixed use of 3 kW and 4 kW PV modules
Operating Temperature	–20℃～＋55℃
Overall Efficiency	≥97%
Protection Level	IP20
Protection Mechanism	Input over-voltage, input under-voltage, output over-voltage, output current limiting, output short circuit and over-temperature protection
