Simple deployment and maintenance

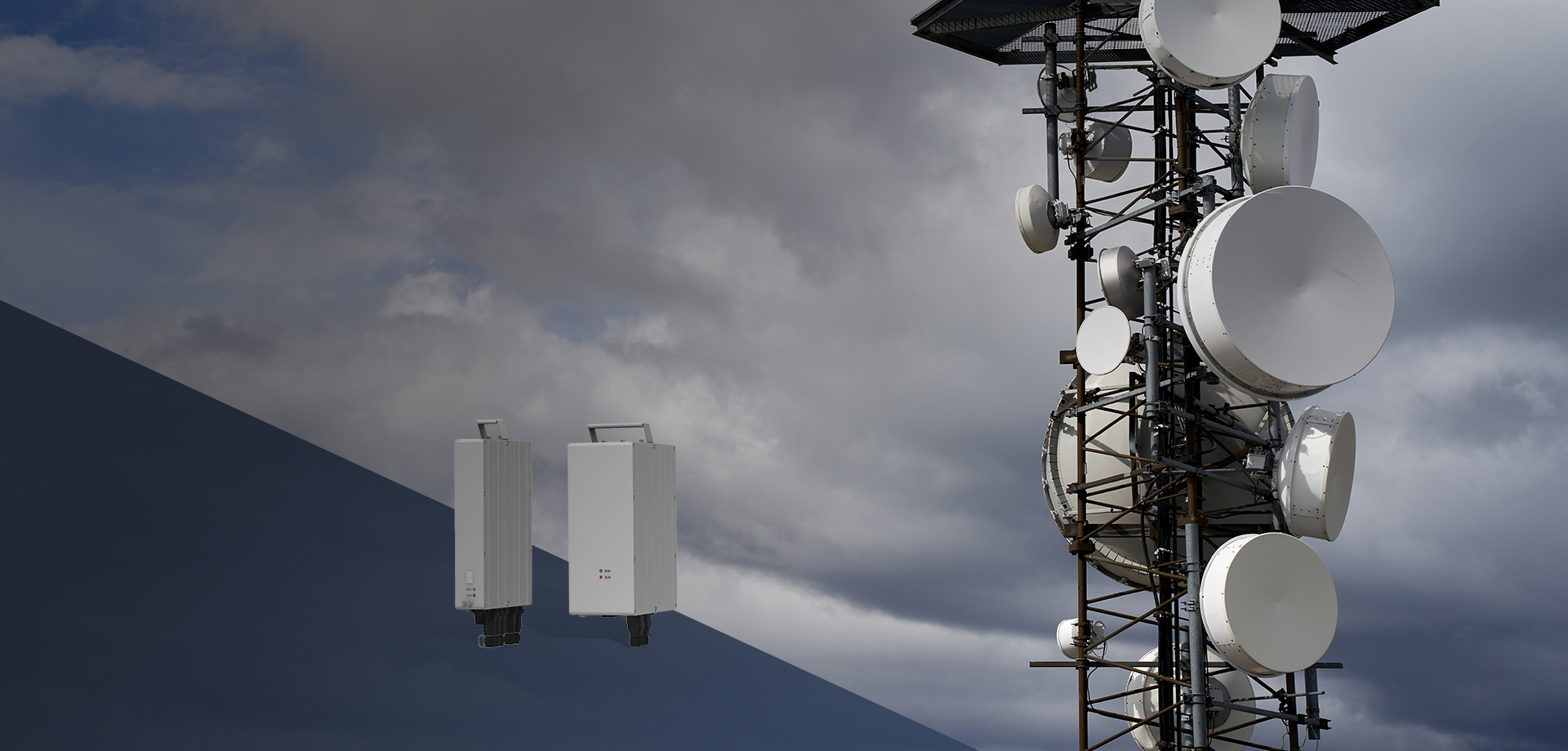

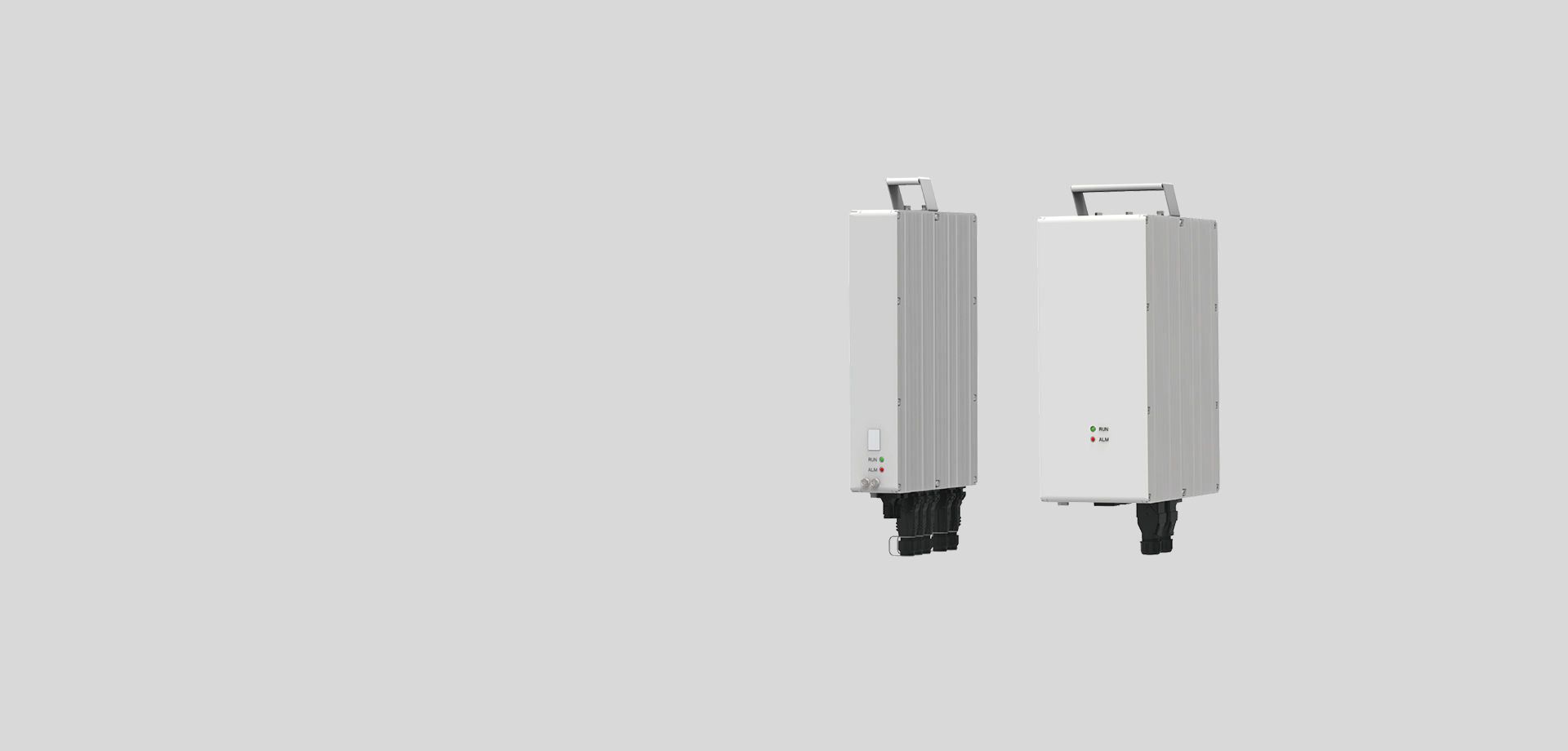

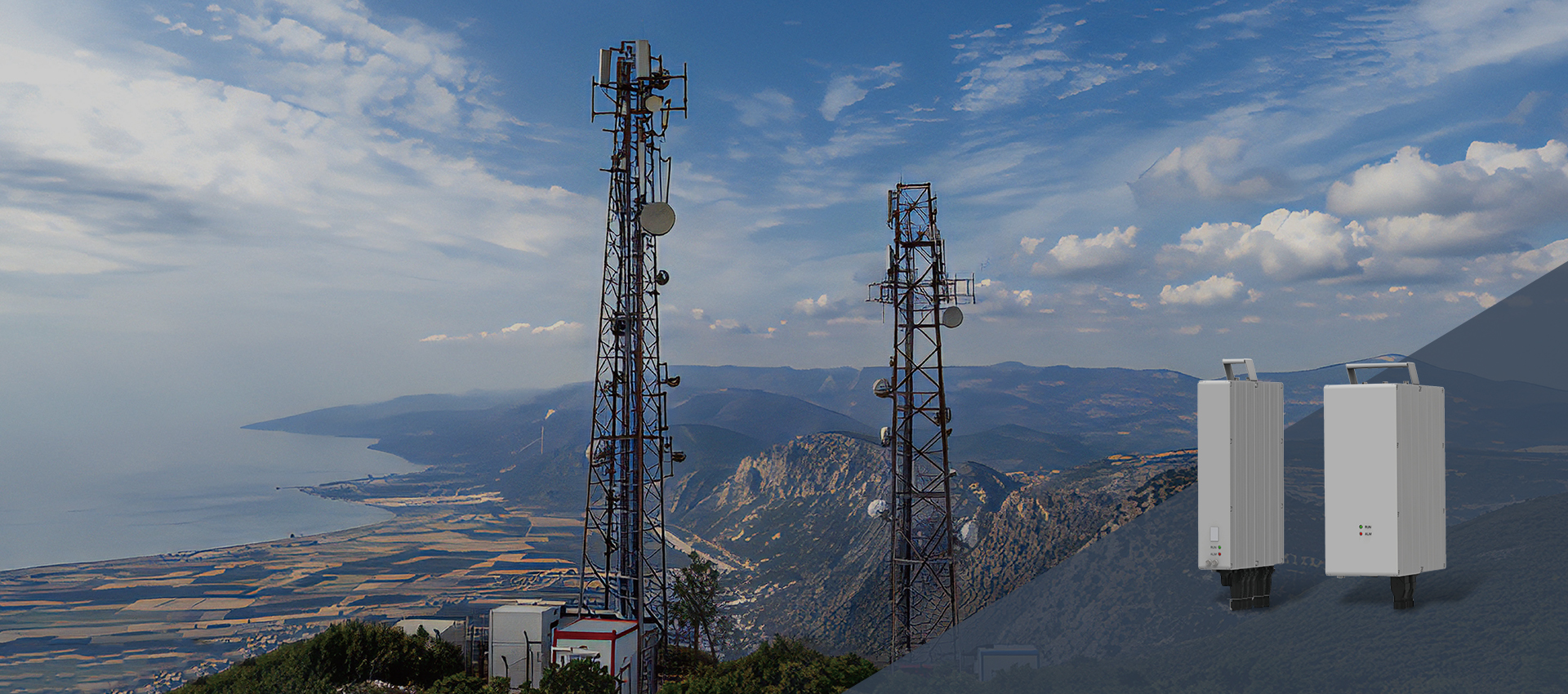

The 5G micro base station power supply consists of the power rectifier module and lithium battery module, featuring compact design and allows for fast deployment.
The rectifier module integrates the functions of monitoring, power distribution and lightning protection.
The battery module integrates the functions of BMS, power distribution and lightning protection.
Flexible combination between the rectifiers and batteries.
Fast deployment
Support of various installation ways
Plug-and-play connector (error-proof design)
Zero onsite maintenance
Intelligent and precise remote control
Sub-circuit electricity consumption measurement supported
Online expansion

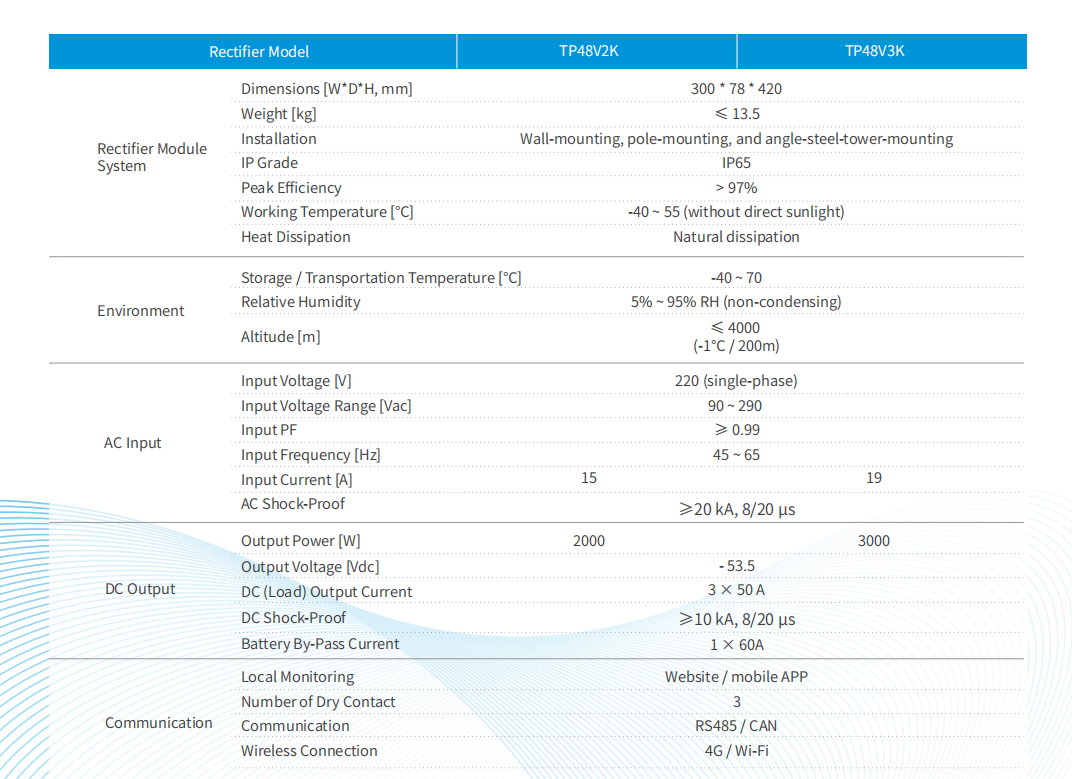

Rectifier Model | TP48V2K | TP48V3K |
Input Voltage [V] | 220 (single-phase) | 220 (single-phase) |
Input Current [A] | 15 | 19 |
Output Power [W] | 2000 | 3000 |
Output Voltage [Vdc] | - 53.5 | - 53.5 |
DC (Load) Output Current | 3 × 50 A | 3 × 50 A |
Battery Branch Circuit Current | 1 × 60 A | 1 × 60 A |
Dimensions [W*D*H, mm] | 300*78*420 | 300*78*420 |
Weight | ≤ 13.5 kg | ≤ 13.5 kg |
Max. Efficiency | 97% | 97% |
Local Monitoring | Website/mobile APP | Website/mobile APP |
Communication | RS485/CAN | RS485/CAN |
Wireless Connection | 4G / Wi-Fi | 4G / Wi-Fi |
Heat Dissipation | Natural cooling | Natural cooling |
IP Grade | IP65 | IP65 |

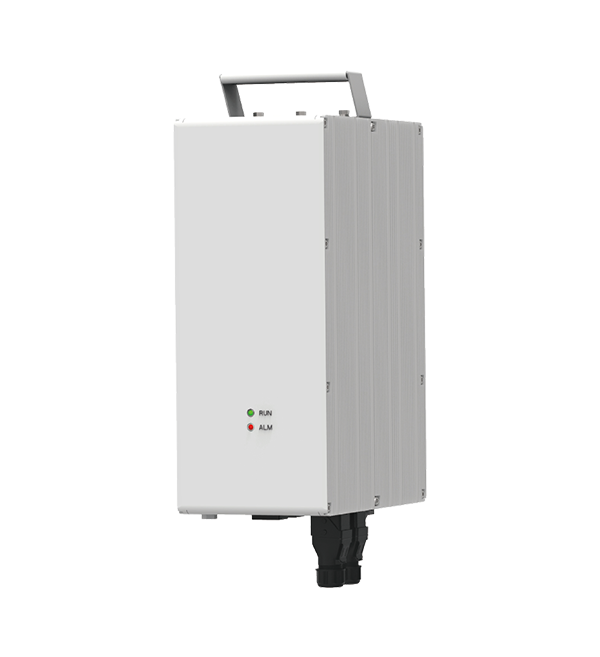

Battery Model | TP48V50Ah |
Cell Type | LFP |
Nominal Voltage [V] | 48 |
Nominal Capacity [Ah] | 50 |
Dimensions [W*D*H, mm] | 300*155*420 |
Weight [kg] | ≤ 30 |
Parallel Connection | Up to 16 (auto-coding supported) |
Communication | RS485 * 2 |
Protection | Over voltage,under voltage, short circuit, overload, over current, over temperature, low temperature protection, etc. |
Heat Dissipation | Natural cooling |
