Product features and advantages

Intelligent main control technology Intelligent charge and discharge control Intelligent battery management system

Service life: 6000 cycles Excellent current balancing performance Wider application temperature range Excellent overcurrent capability

Use safer lithium iron phosphate batteries Supports a variety of real-time alarm and protection functions Built-in DC switch to isolate battery and inverter Built-in fire protection module

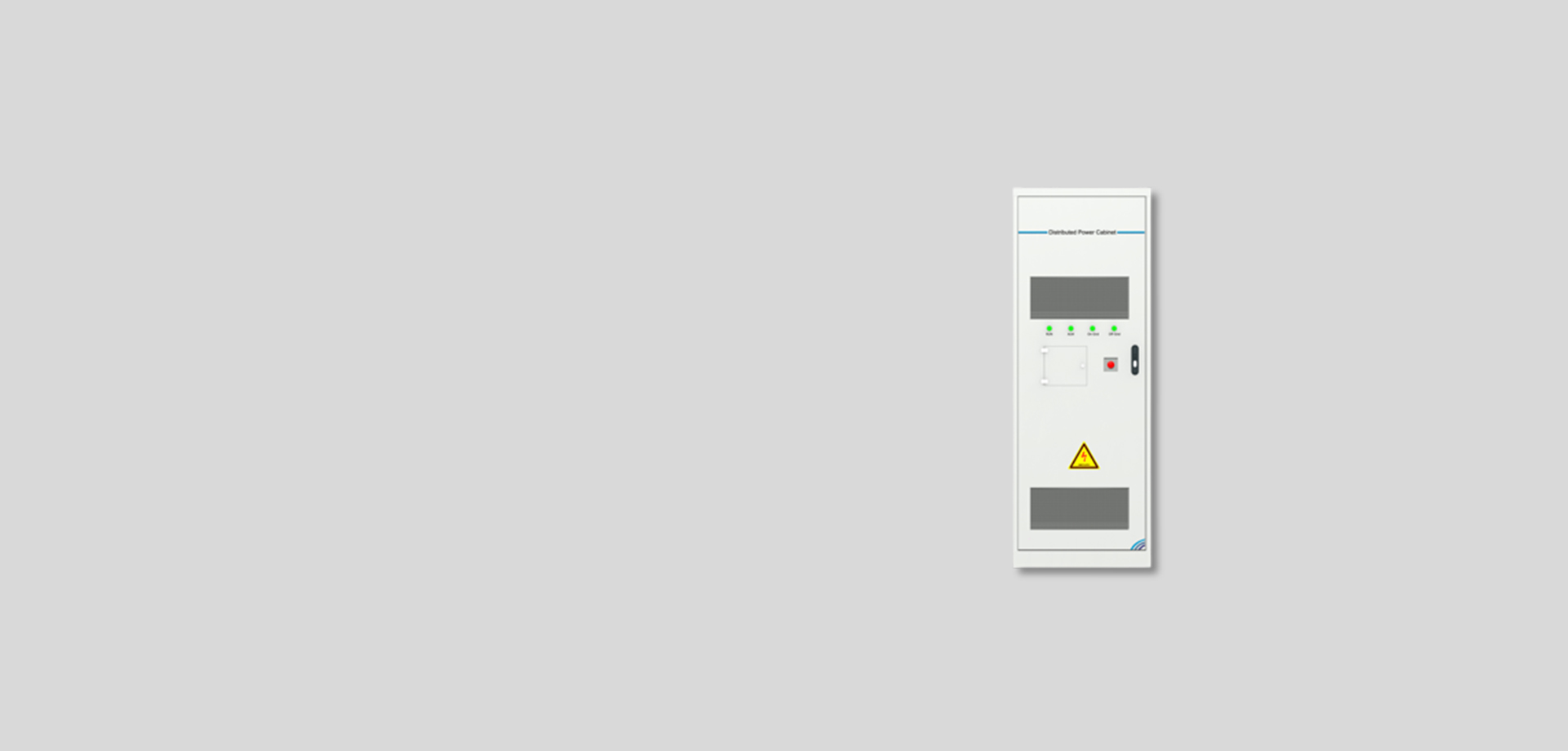

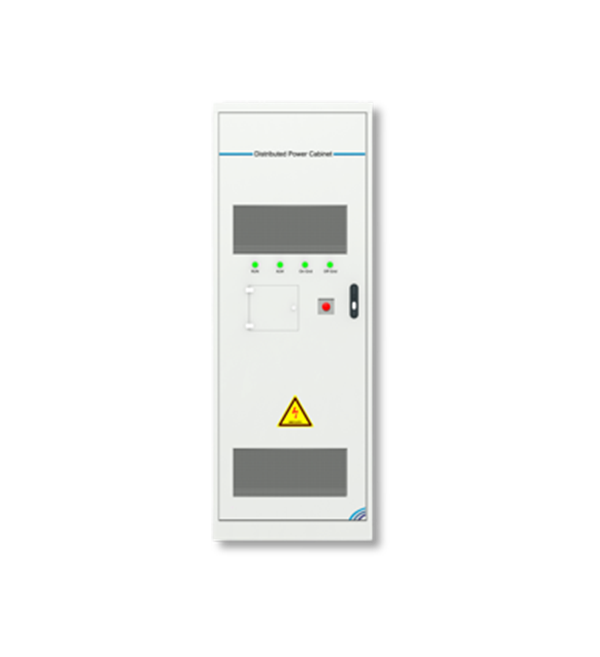

Distributed Power Control Cabinet

Grid-connected control energy storage system

The distributed power cabinet integrates 5 DC/AC inverter modules, temperature control system, fire protection system, local monitoring, access control, water immersion, etc. into an IP54 outdoor cabinet. The product supports grid-connected operation mode. This system can be used with photovoltaic systems to form an AC coupled PV & battery storage system.

: (For PCS module) IEC62477-1/IEC62109-1,-2/G99/AS/NZS 4777.2/EN 50549-1,-2.

Ultimate Safety Double overcharge and overdischarge protection Single-cluster architecture, electrical isolation, significantly reduce the risk of electrical short circuit independent battery compartment, physical isolation, better protection of the battery.

Better Profit High system energy efficiency Intelligent single cluster management, no loop current loss, supports non-stop operation and maintenance, and improves total system utilisation.

Grid Friendly

Flexible Heeling Net Control

Customised grid functions to support the stable operation of a high proportion of new energy power systems and meet the needs of advanced applications in complex scenarios.

Product Parameters

The main parameters

DC Output Voltage Range[V]	600-1000
Max. PV input Power [kW]	36/48
Max. PV input Power [kW]	36/48
Limit of DC current [A]	250
AC side rated voltage [V]	400/480Vac

Other parameters

Dimensions[WDH, mm]	850x1100x2330
Operating temperature range[℃]	-25 ～ +60

Accessories area

Isolation	Pure grid connection: no isolation transformer is configured
Fire Fighting	Aerosol
