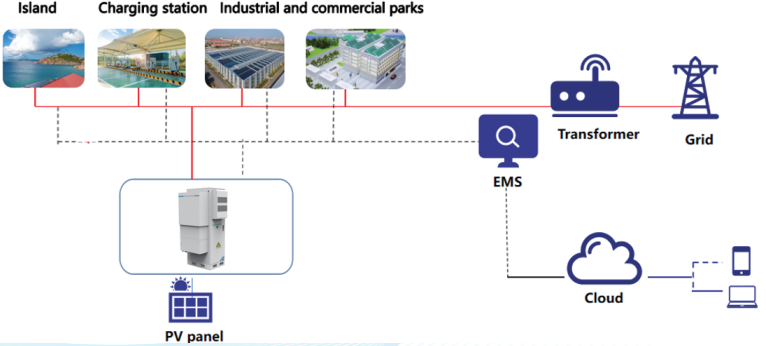

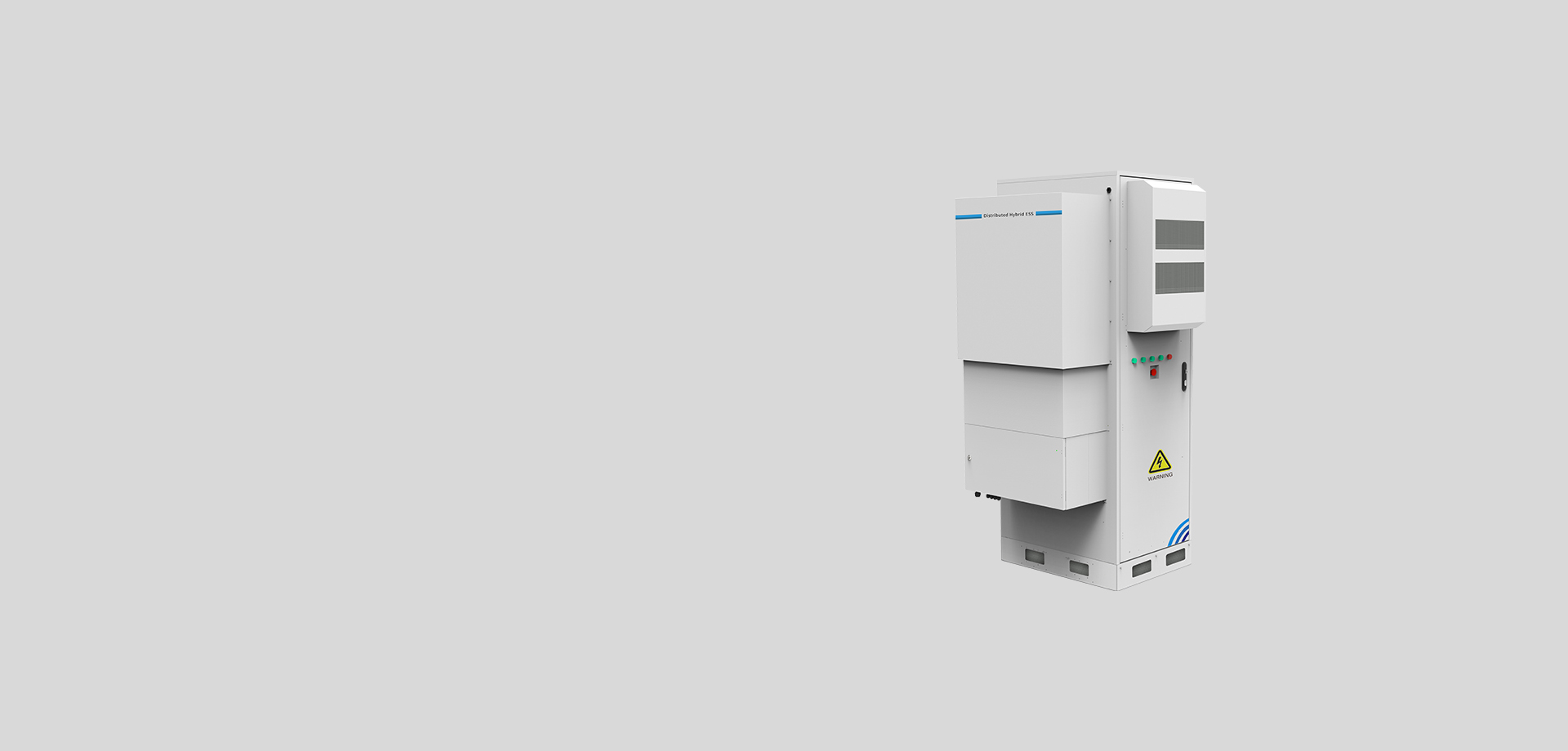

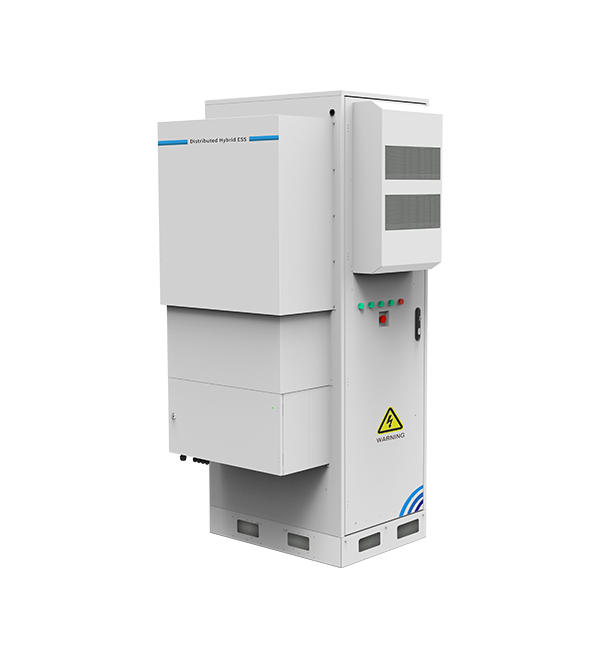

Integrated design, modular assembly, integrating the optical storage machine, battery cabinet DC convergence, BMS master control, display, local EMS (including 4G), power distribution, access control, flooding, etc. in an independent IP54 outdoor cabinet. The product supports multiple MPPT and storage battery inputs, and supports both on- and off-grid operation modes. The product adopts standardised and unitised design, and can be flexibly configured according to the requirements of actual application scenarios.
>6000 cycles (80% EOL), large surface air duct design for independent battery cells to increase battery life.
Instantaneous switching between high-current charging and discharging improves power generation efficiency.
It can realise on-grid and off-grid operation modes, with seamless switching function to ensure the continuous power consumption of loads.

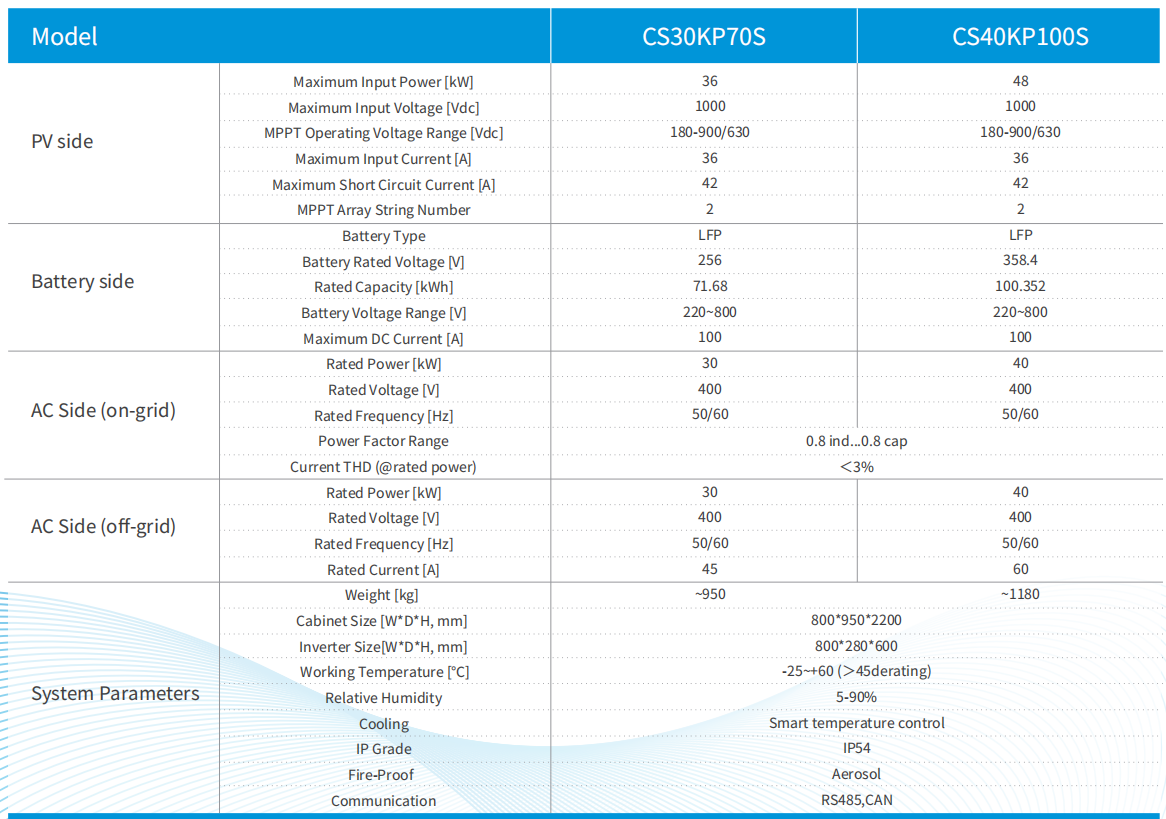

Max. PV Input Voltage [V] | 1000 |
Max. PV Input Power [kW] | 36/48 |
Battery Voltage Range [V] | 220~800 |
Rated Power [kW] | 30/40 |
AC Side Rated Voltage [V] | 400 |
AC Side Rated Current [A] | 45/60 |
BMS Protection | over-voltage protection, under-voltage protection, over-current protection, short-circuit protection |
PCS Protection | ground insulation resistance monitoring, residual current protection, anti-islanding protection, DC over-voltage/over-current protection |
Cabinet Size [W*D*H, mm] | 800*950*2200 |
Inverter Size[W*D*H, mm] | 800*280*600 |
Weight [kg] | ~950/~1180 |
Communication | RS485,CAN |
Fire Fighting | Aerosol |
IP Grade | IP54 |
