The EnerMax-HEBS is designed to be compatible with local and remote monitoring. It features a sleek and modern wall-mounted design that is perfect for any home. It’s also incredibly easy to install, so you can start enjoying the benefits of energy storage right away.
The battery box is designed with a modular design that allows for great expandability. They are also equipped with advanced features that ensure reliable and efficient energy storage.
The system is designed to provide safe and reliable solutions, the batteries are "built-in aerosol" feature in residential energy storage systems, ensuring efficient and safe batteries.

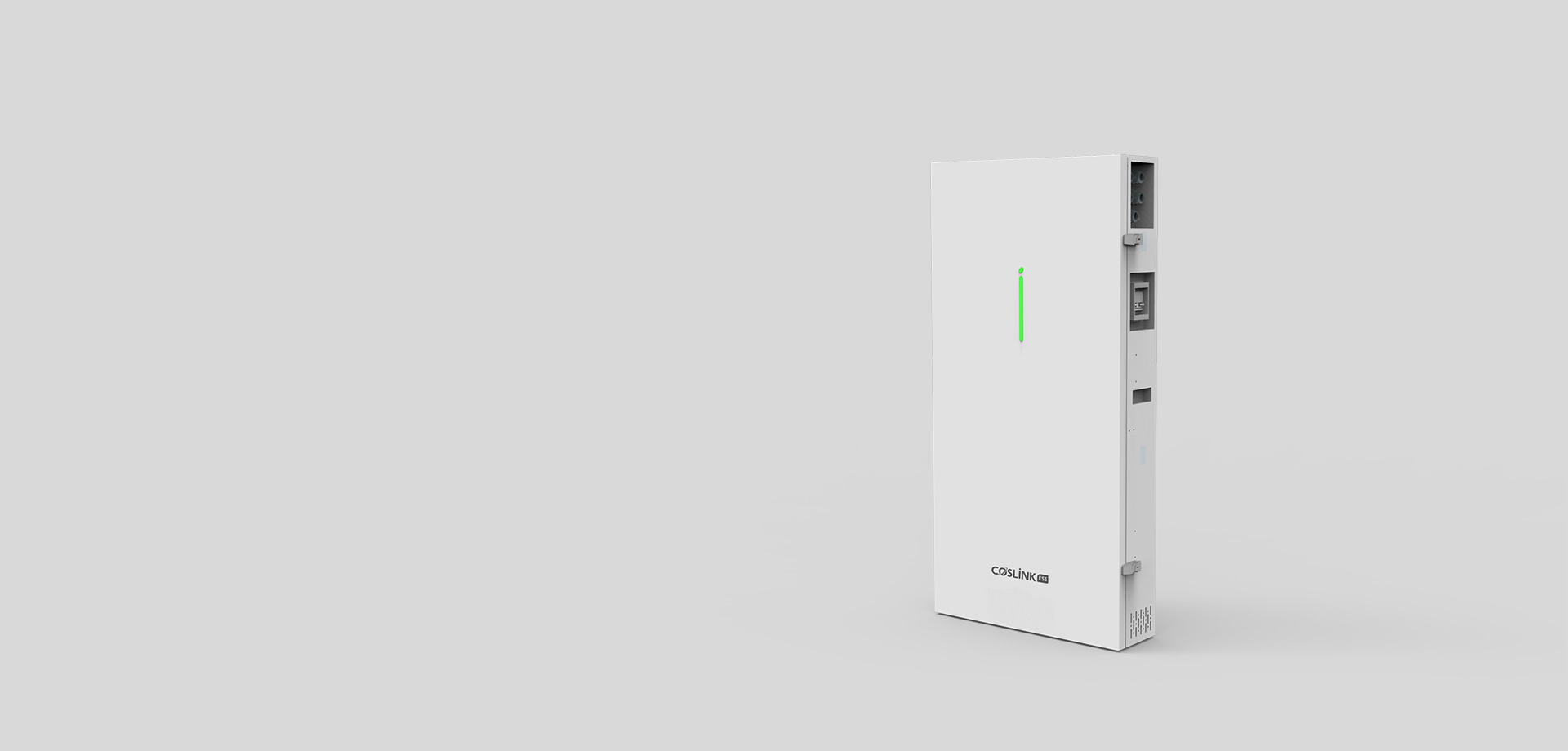

EnerMax-HEBS wall-mounted battery that is compact and lightweight, making it easier to install and maintain.

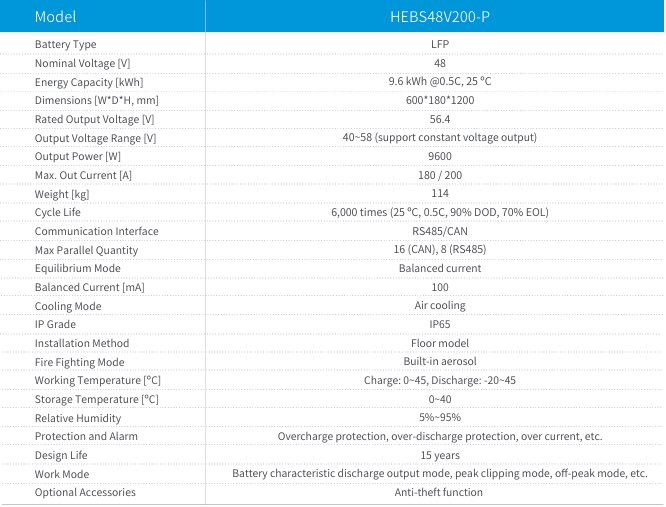

Battery Type | LFP |
Nominal Voltage [V] | 48 |
Energy Capacity [kWh] | 9.6 kWh @0.5C, 25 ºC |
Dimensions [W*D*H, mm] | 600*180*1200 |
Rated Output Voltage [V] | 56.4 |
Output Voltage Range [V] | 40~58 (support constant voltage output) |
Output Power [W] | 9600 |
Max. Out Current [A] | 180 / 200 |
Weight [kg] | 114 |
Cycle Life | 6,000 times (25 °C, 0.5C, 90% DOD, 70% EOL) |
Communication Interface | RS485/CAN |
Max Parallel Quantity | 16 (CAN), 8 (RS485) |
Equilibrium Mode | Balanced current |
Balanced Current [mA] | 100 |
Cooling Mode | Air cooling |
IP Rating | IP65 |
Installation Method | Wall mounted |
Fire Fighting Mode | Built-in aerosol |
Working Temperature [°C] | Charge: 0~45; Discharge: -20~45 |
Storage Temperature [°C] | 0~40 |
Relative Humidity | 5%~95% |
Protection and Alarm | Overcharge protection, over-discharge protection, over current, etc. |
Design Life | 15 years |
Work Mode | Battery characteristic discharge output mode, peak clipping mode, off-peak mode, etc. |
Optional Accessories | Anti-theft function |
