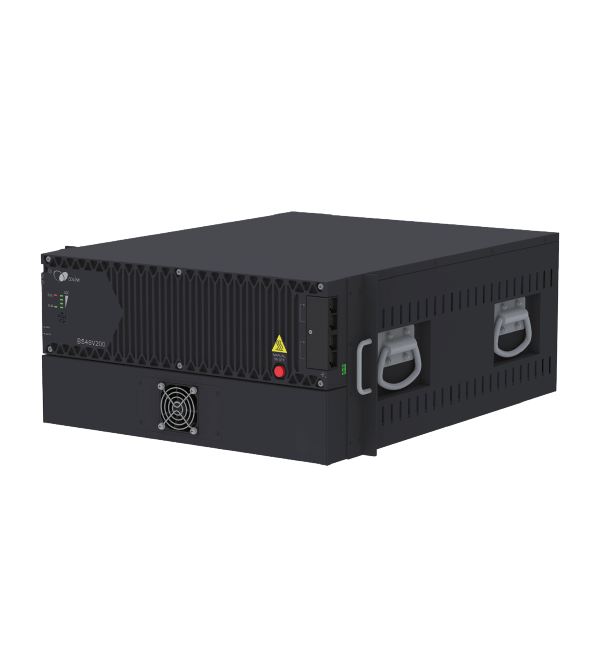

Composed of prismatic LFP cells, intelligent battery management system (BMS), and bi-directional DC-DC converter (BDC) are designed for 48V application scenarios.
High density smart lithium battery, with support of mixed use with lead-acid battery & conventional lithium batteries.
Intelligent management based on smart EMS & remote monitoring Cloud platform.
Smart active control technology
Integrated BMS and high efficiency BDC optimizer
Local & remote monitoring
Precise calibration of SOC and SOH
Smart active control technology
Integrated BMS and high efficiency BDC optimizer
Local & remote monitoring
Cycle life: 4000-6000 cycles
Wide application temperature range
Excellent current balancing performance
Mixed use with lead-acid battery & conventional lithium batteries

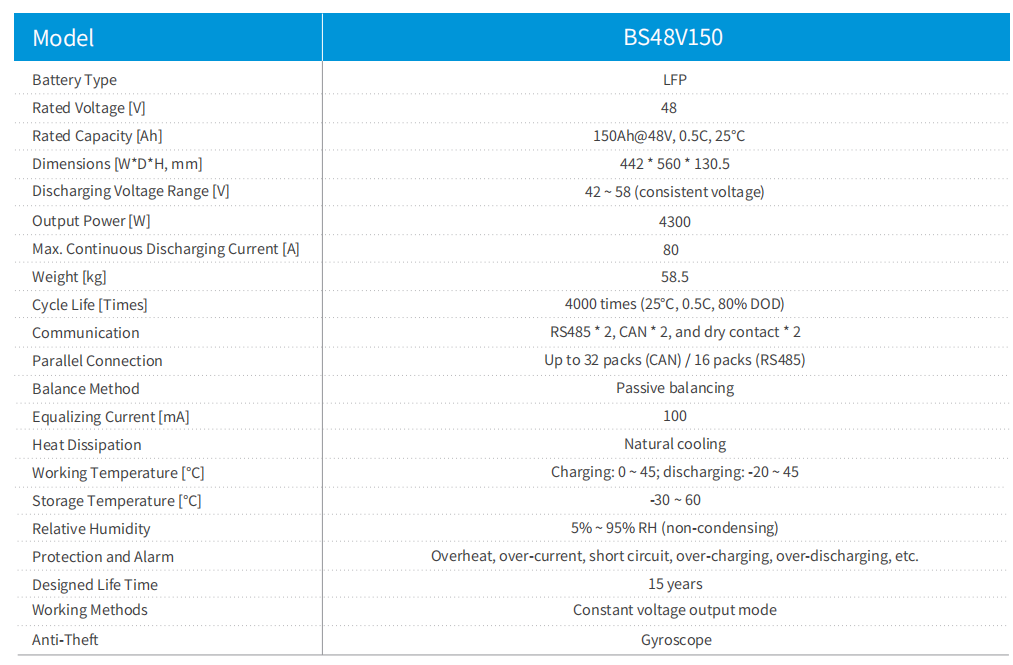

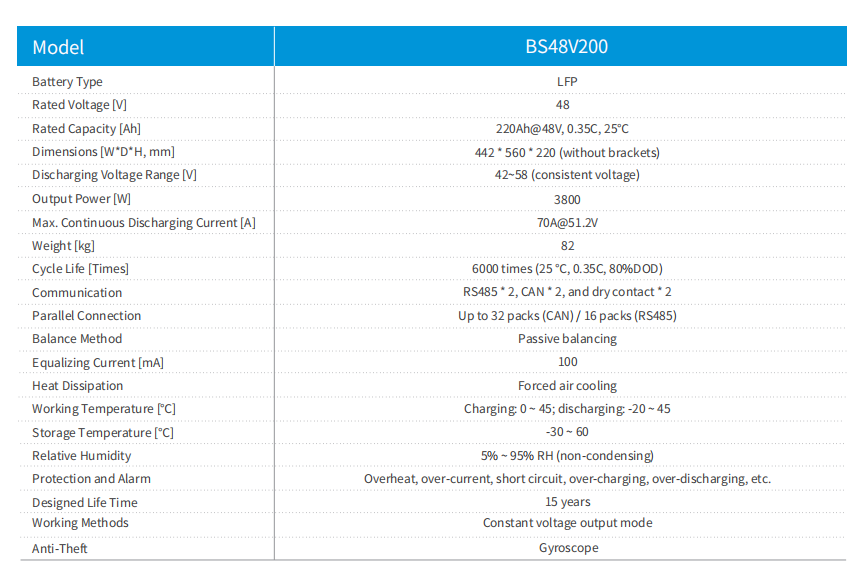

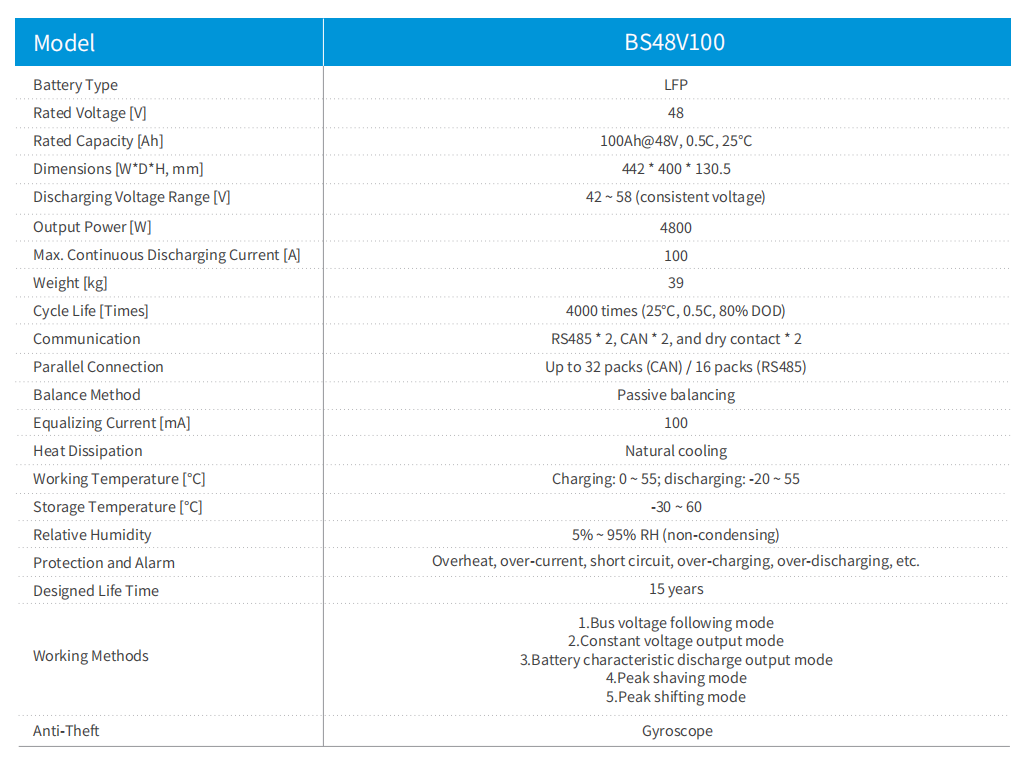

Items | 48V100Ah | 48V150Ah | 48V200Ah |
Battery Type | LFP | LFP | LFP |
Rated Voltage [V] | 48 | 51.2 | 51.2 |
Rated Capacity [Ah] | 100Ah @48V, 0.5C, 25℃ | 150Ah@48V,0.5C,25℃ | 220Ah @48V, 0.35C, 25℃ |
Dimensions [W*D*H, mm] | 442*400*130.5 mm (excluding mounting ears) | 442*560*130.5 mm (excluding mounting ears) | 442*560*220 mm (not including mounting ears) |
Discharging Voltage Range [V] | 42 ~ 58 (consistent voltage) | 42 ~ 58 (consistent voltage) | 42 ~ 58 (consistent voltage) |
Output Power [W] | 4800 | 4800 | 3800 |
Max. Continuous Discharging Current [A] | 100 | 100 | 70 |
Weight [kg] | 39 | 58.5 | 82 |
Cycle Life [Times] | 4000 | 4000 | 6000 |
Communication | RS485*2, CAN*2, Dry Contacts*2 | RS485*2, CAN*2, Dry Contacts*2 | RS485*2, CAN*2, Dry Contacts*2 |
Parallel Connection | Up to 32 pcs (CAN)/16 pcs (RS485) | Up to 32 pcs (CAN)/16 pcs (RS485) | Up to 32 pcs (CAN)/16 pcs (RS485) |
Heat Dissipation | Natural cooling | Natural cooling | Forced air cooling |
Protection/Alarm | Overtemperature, Overcurrent, Short circuit, Overcharge, Overdischarge, etc. | Overtemperature, Overcurrent, Short circuit, Overcharge, Overdischarge, etc. | Overtemperature, Overcurrent, Short circuit, Overcharge, Overdischarge, etc. |
