It can be directly connected to the DC bus of the base station’s switch power supply, automatically detect the voltage of the DC bus, realize autonomous charging and discharging, and seamlessly install without affecting the operation of the original equipment, maximizing the safety of the base station equipment operation.
The system has a peak-valley control strategy built-in, which ensures that the system is charged and discharged reasonably at different electricity price stages, completing peak-valley arbitrage.
It can detect the status of the city’s power supply. In case of abnormal power supply, it can switch to backup power supply status to provide power to the load. The overall process is seamless and does not affect the smooth operation of the station equipment.

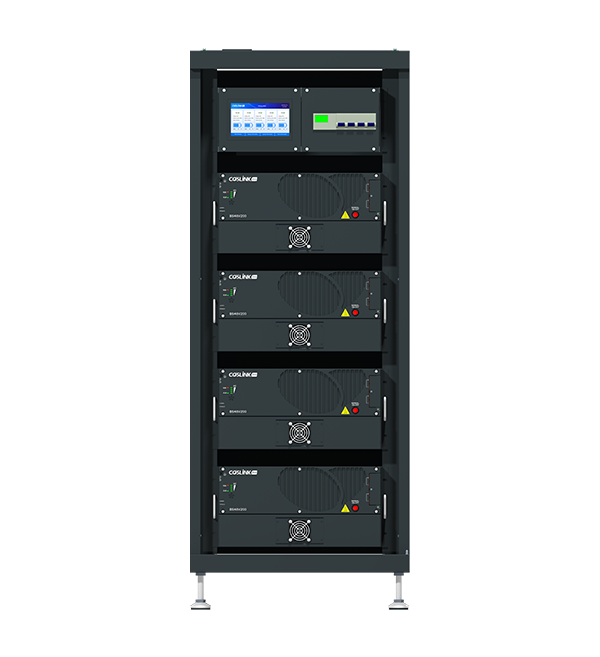

Supports arbitrary combinations of 100Ah, 150Ah, and 200Ah Coslink smart lithium batteries, which can be flexibly selected and configured according to operator needs.

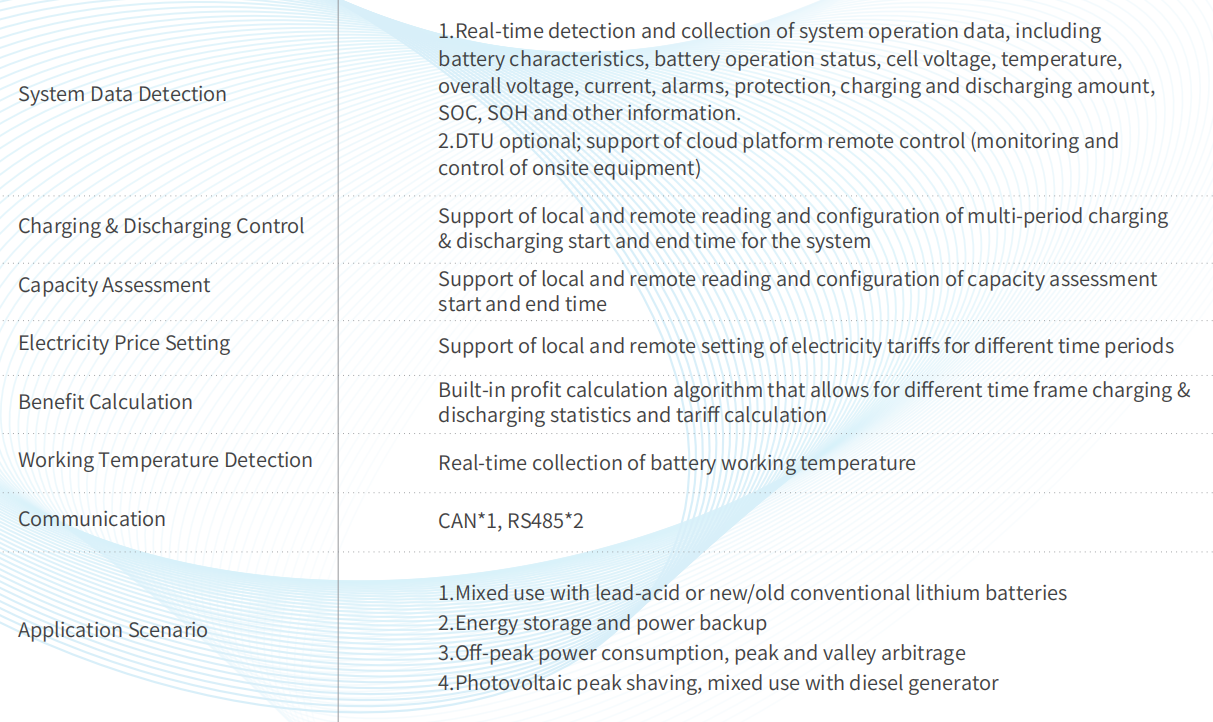

EMS system has a built-in peak-shaving control strategy, which can control the operation mode of the energy storage system. Users can customize the charging and discharging trigger time and duration based on local peak-valley electricity price standards and real-time peak-valley arbitrage data of the system, set segmented electricity prices, and optimize investment returns.
Intelligent management, smooth switching of various operation modes. Distributed system architecture, flexible expansion, integration of various management functions, support for third-party platform docking and development. The system supports cloud platforms and can remotely manage tens of thousands of sites.

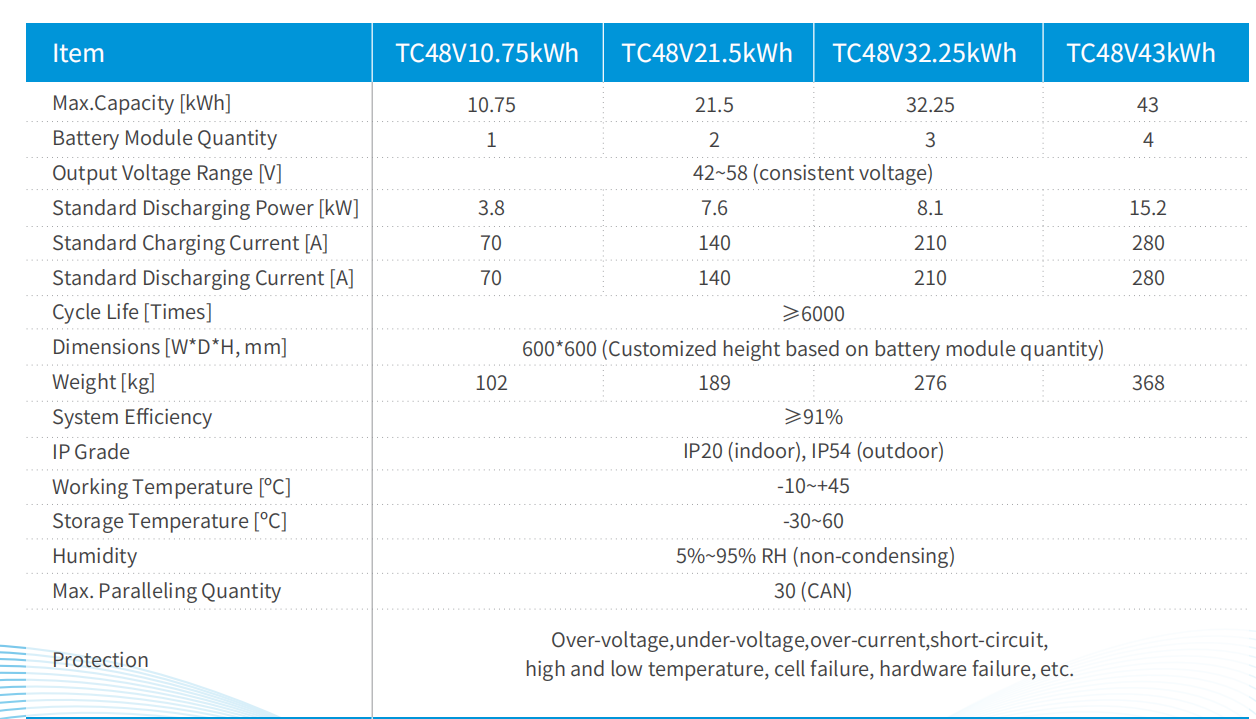

Capacity | Flexible configuration |
Output Voltage Range [V] | 42~58 V(consistent voltage) |
Cycle Life [Times] | ≥6000 times (25℃, 0.35C charge and discharge, 95% DOD), ≥80% initial capacity. |
System Efficiency | ≥91% |
Working Temperature [ºC] | -10 ~ +45 |
IP Grade | IP20 (indoor), IP54 (outdoor) |
Protection | Over-voltage,under-voltage,over-current,short-circuit, high and low temperature, cell failure, hardware failure, etc. |
Dimensions [W*D*H, mm] | 600*600 (Customized height based on battery module quantity) |
Weight [kg] | 102/189/276/368 |
Max. Paralleling Quantity | 30 (CAN) |
Communication | CAN*1, RS485*2 |
