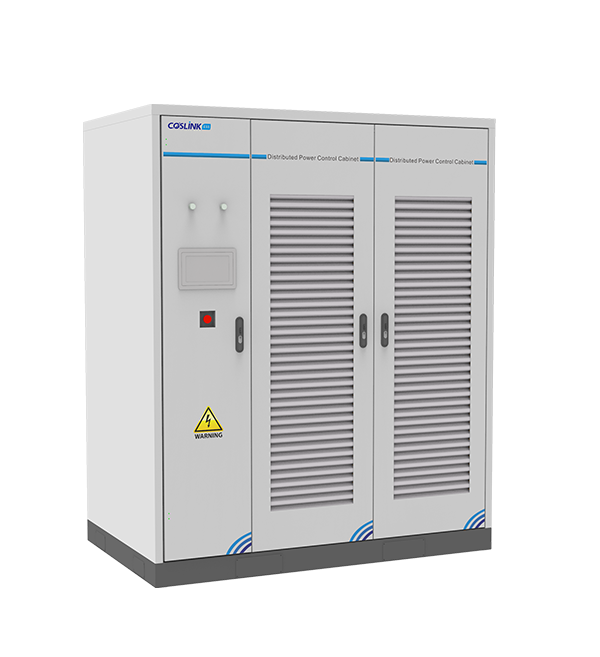

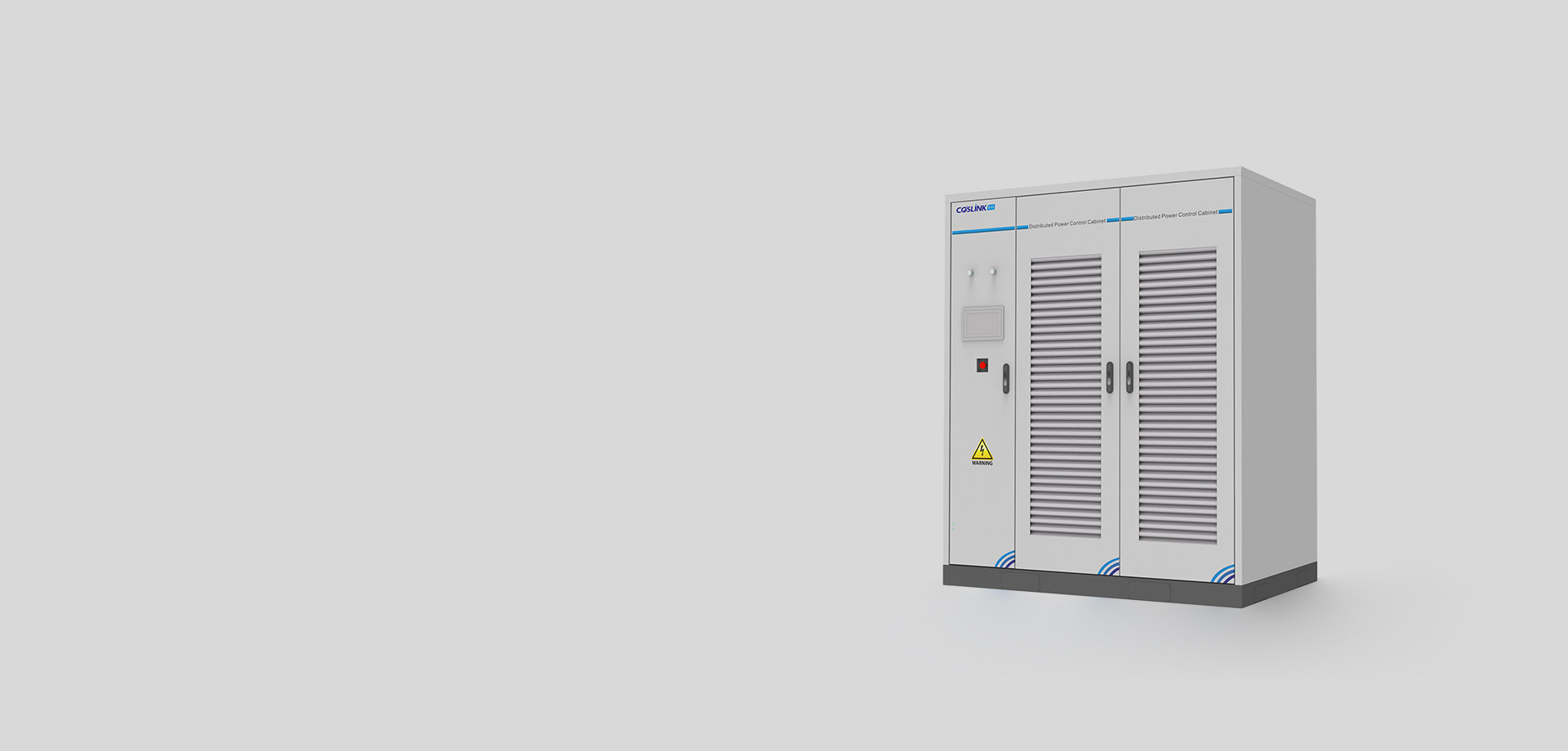

Integrated design and modular assembly integrate optical storage machine, DC confluence, BMS master control, display screen, local EMS (including 4G or WIFI), power distribution, access control, water immersion, etc. into an independent IP54 outdoor cabinet.
The product supports multiple MPPT and energy storage battery inputs, and supports off-grid operation mode.
The product adopts standardized and unitized design and can be flexibly configured according to the needs of actual application scenarios.
Maximize the use of photovoltaic power generation, increase photovoltaic consumption, create green energy, improve the environment, and improve residents' well-being.
The converter adopts a three-phase full-bridge topology to achieve four-quadrant operation; the filter circuit adopts an LCL filter circuit and has its own isolation transformer to achieve electrical isolation.
It adopts power frequency design scheme and advanced digital control technology to optimize the control performance and improve the reliability of the system, which is suitable for different battery charging and discharging needs.
1. Photovoltaic consumption and increase the penetration of photovoltaic power generation;
2. Off-grid power backup to provide reliable energy for areas without electricity;
3. Power quality management, improve distribution terminal harmonics and distribution voltage imbalance problems.

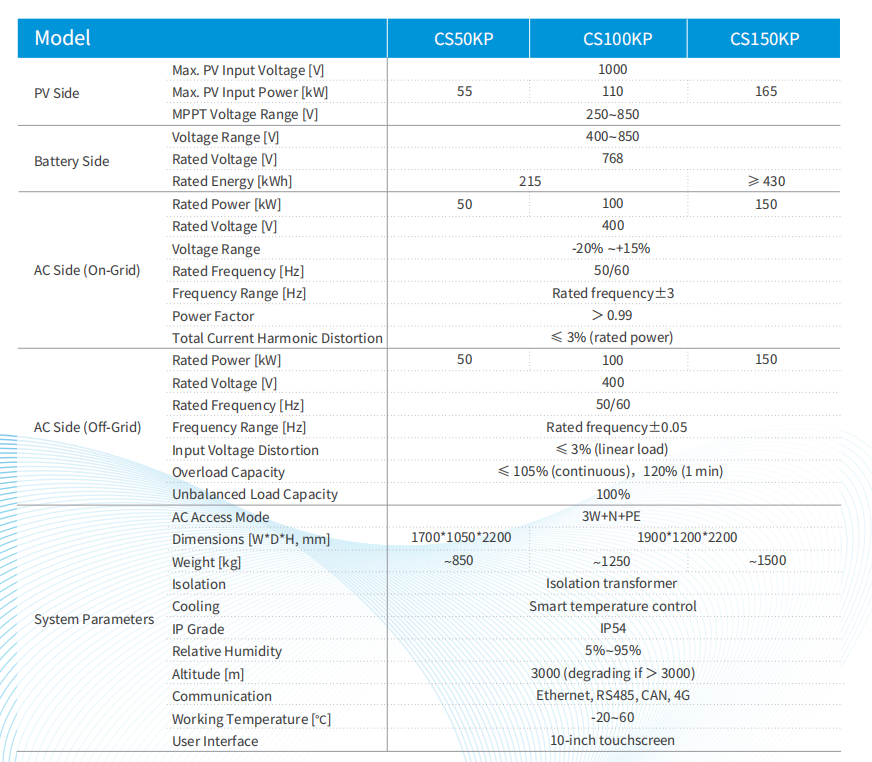

Max. PV Input Voltage [V] | 1000 |
Max. PV Input Power [kW] | 55/ 110/ 165 |
Battery Voltage Range [V] | 400~850 |
Max. Charging Power [kW] | 110 |
AC Side Rated Voltage [V] | 400 |
Overload Capacity | ≤ 105%(continuous),120%(1min) |
Unbalanced Overload Capacity | 100% |
Dimensions[W*D*H, mm] | 1700*1050*2200/1900*1200*2200 |
Weight [kg] | ~850/~1250/~1500 |
Isolation | Isolation transformer |
Fire Fighting | Aerosol |
Cooling | Smart temperature control |
IP Grade | IP54 |
