The system is a new energy storage system that provides smart voltage boost and expandable capacity on demand. It is designed to provide a reliable and efficient energy storage solution for residential use.
The system equipped with a battery optimizer that allows for smart boost from low voltage to high voltage. It is designed to stack multiple units together, providing a scalable solution that can be tailored to meet the specific needs of each household.

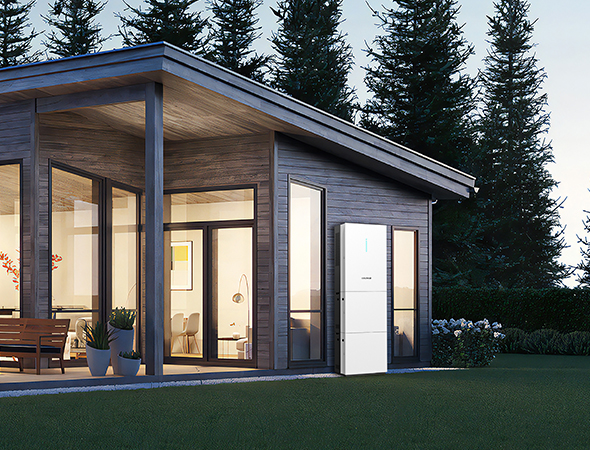

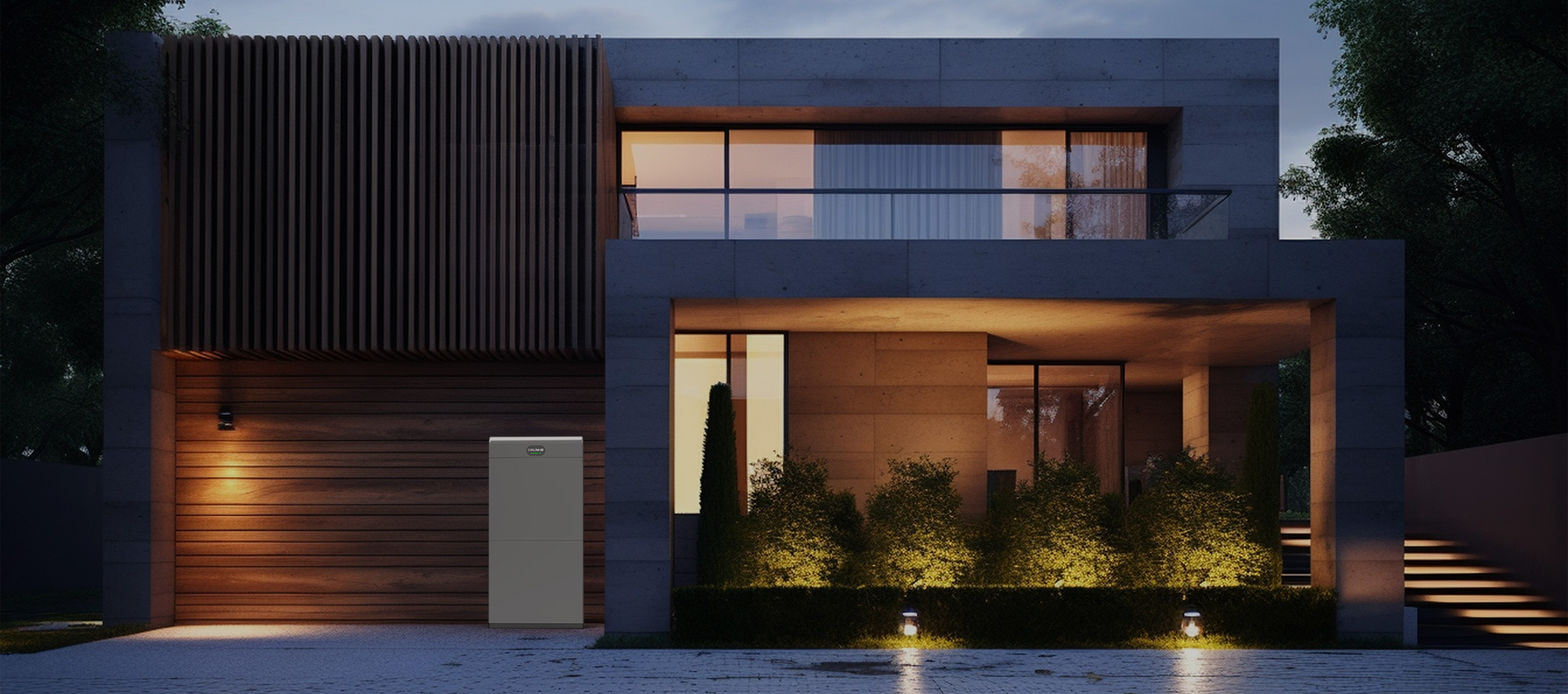

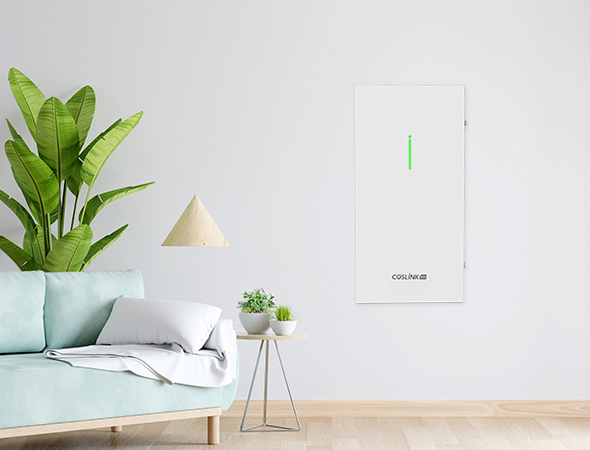

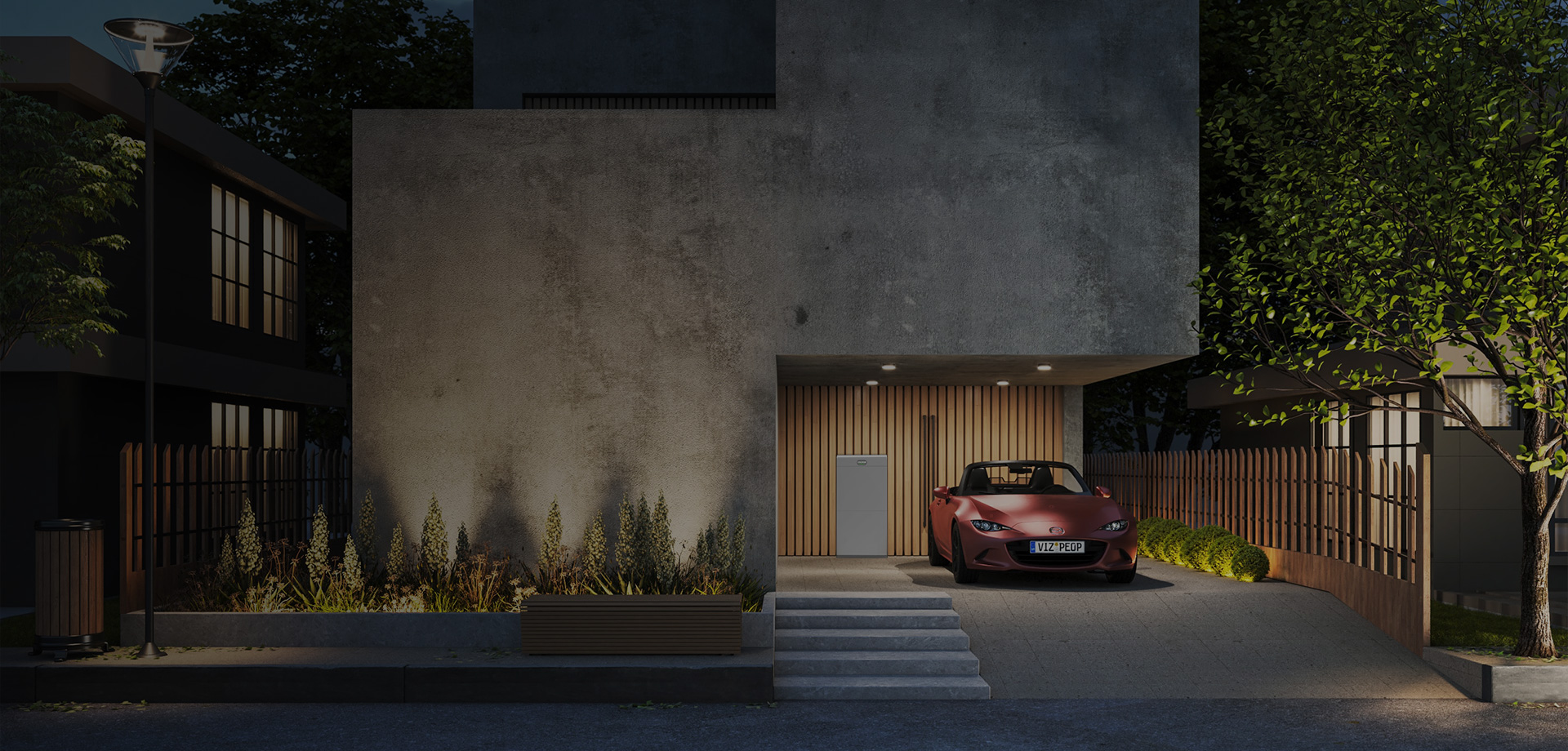

The system is a stackable smart lithium-based residential ESS that is easy to install and incorporates enhanced safety features. With the ability to recharge using solar PV panels, you can rely on stored solar energy during power outages.
The Stacking Residential Energy Storage System is designed to be compact and efficient, with a multi-modular topology that allows for easy scalability, making them ideal for residential use.

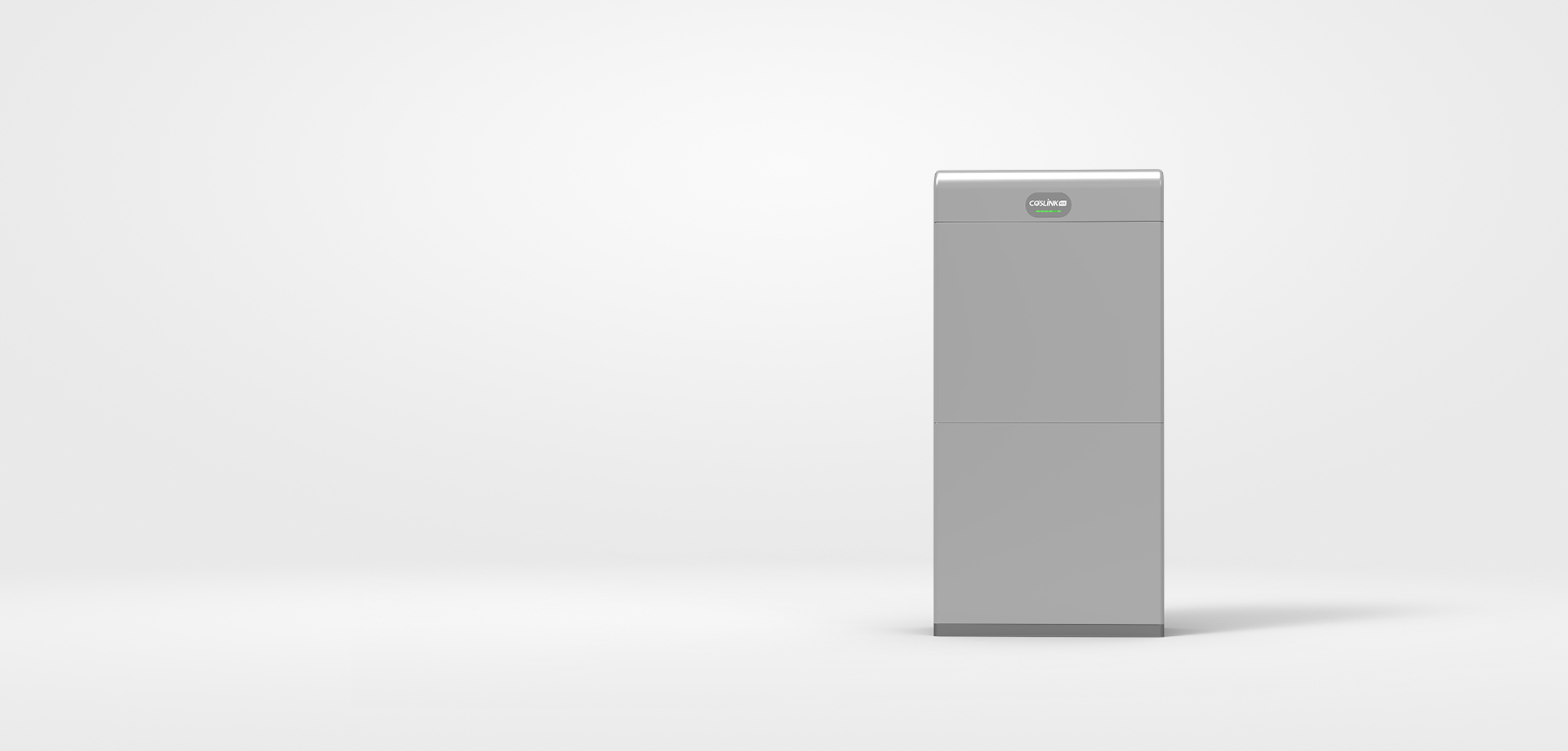

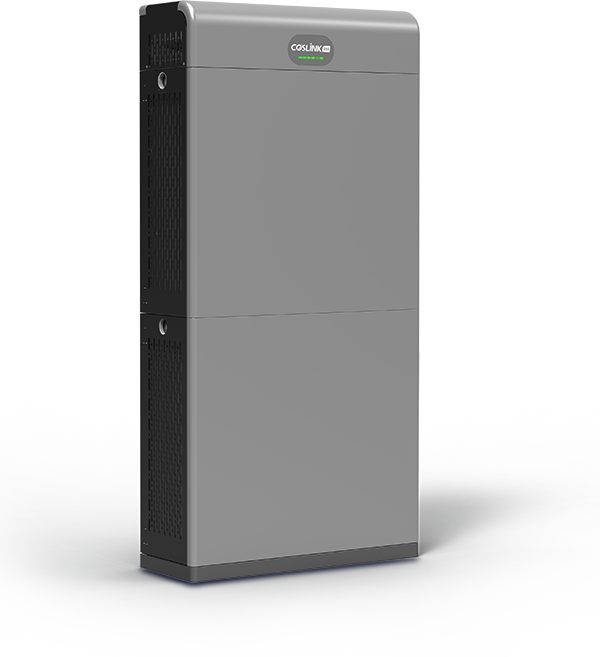

The HEB8-HV battery system, which is a customizable energy solution ideally suited for residential settings with the modular design allowing for up to three smart lithium battery modules of 7.68 kWh each to be stacked, delivering up to 23.04 kWh of energy storage capacity.
Battery cell | LiFePO4 |
Battery Module Energy [kWh] | 7.68 |
Battery Module Voltage [V] | 400 |
Battery Module Capacity [Ah] | 150 |
Norminal Voltage [V] | 400 |
Operating Voltage [V] | 350~450 |
Rated Energy [kWh] | 7.68/module |
Cycle Life | ≥ 6000 (25℃±2℃, 0.5C/0.5C, 70%EOL) |
[1] DC Usable Energy, test conditions: 90% DOD, 0.5C charge & discharge at 25°C. The system usable energy may vary due to system configuration.
[2] The current is affected by temperature and SOC.
[3] The warranty is due whichever reached first of warranty period or energy throughput.
Recommend Depth of Discharge | 90% |
IP Rating | IP65 |
Operating Temperature | Charge: 0~55℃; Discharge: -20℃~55℃ |
Storage Temperature | 0~35℃ |
Installation | Floor-mounted, wall-mounted |
Communication Port | CAN2.0, RS485 |
Warranty | 10 Years |
Communication Cable | 3m RJ45 communication cable with one end having a waterproof terminal |
Power Cable | 2 pieces of 2/0 AWG DC power cable with one end having a waterproof terminal The cable length can be customized based on customer requirements (default length is 2000mm) |
